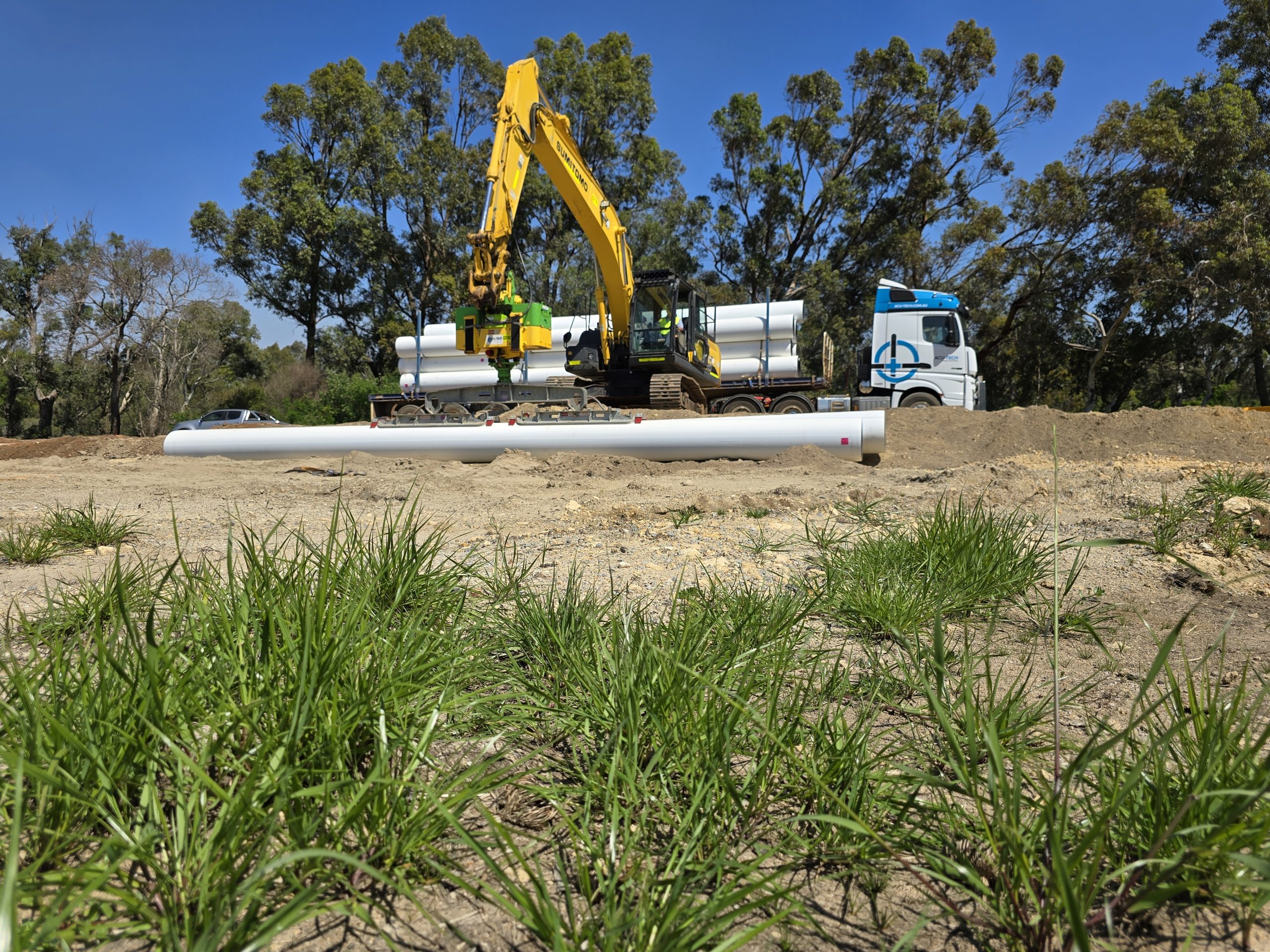

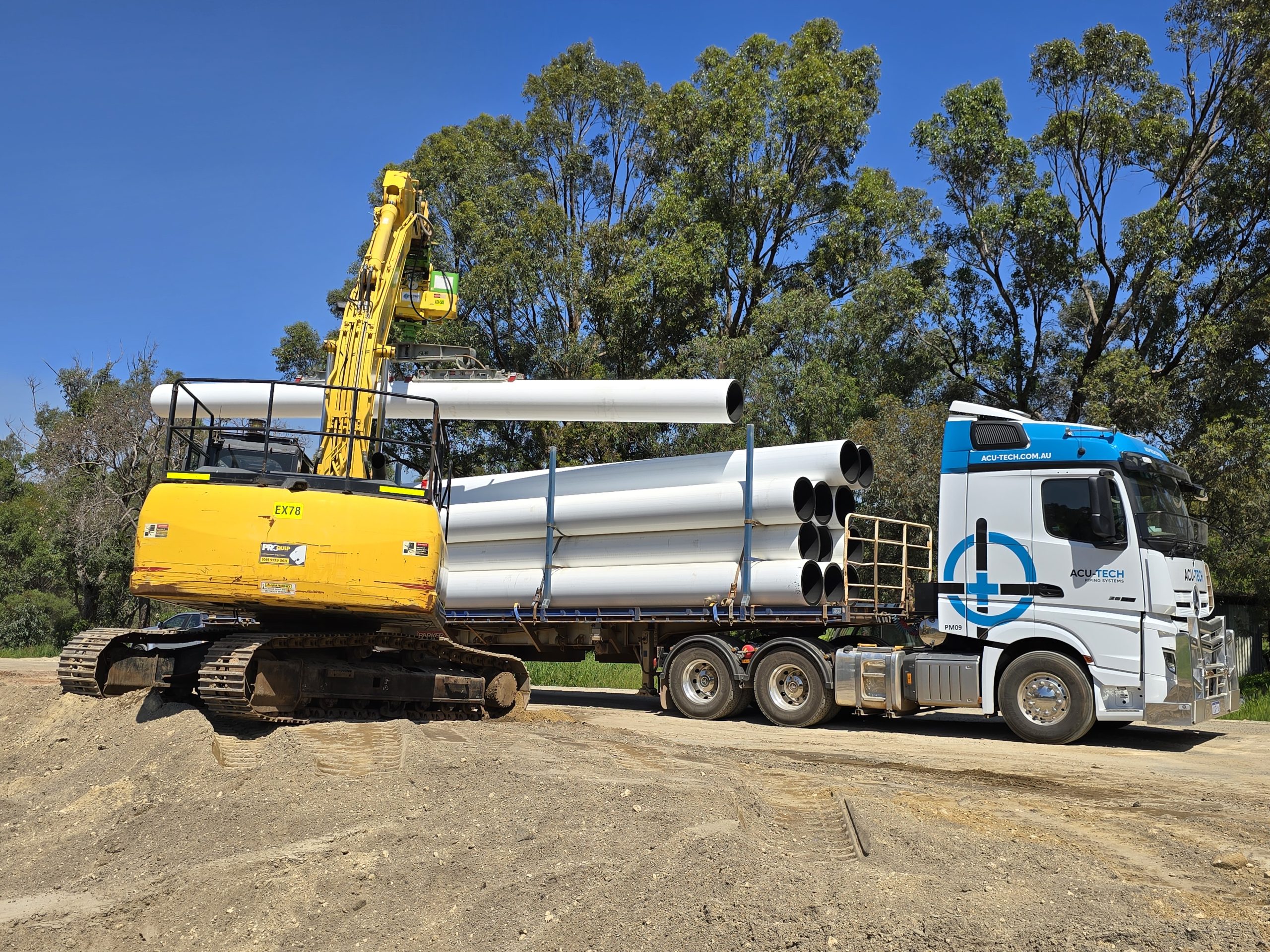

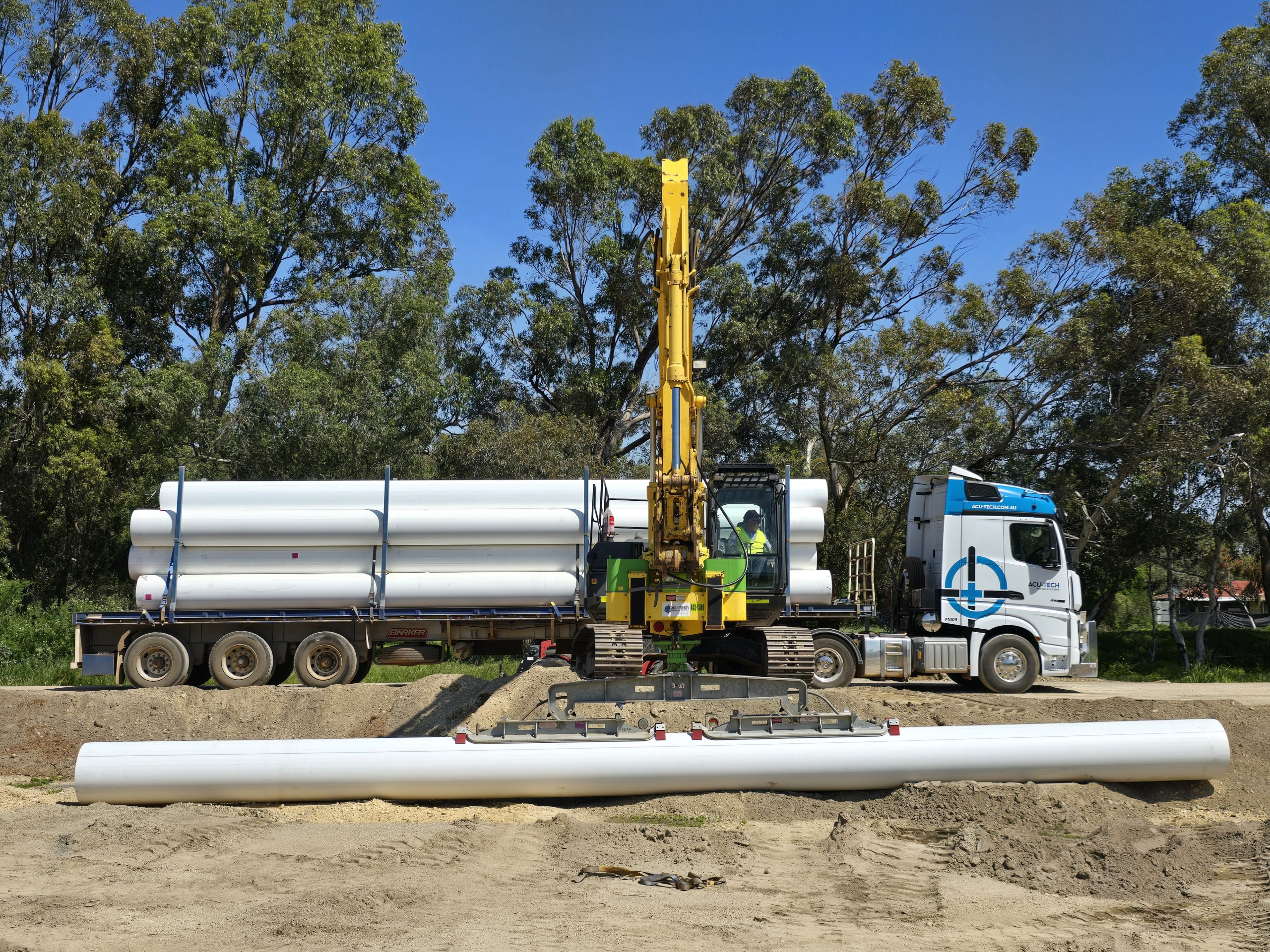

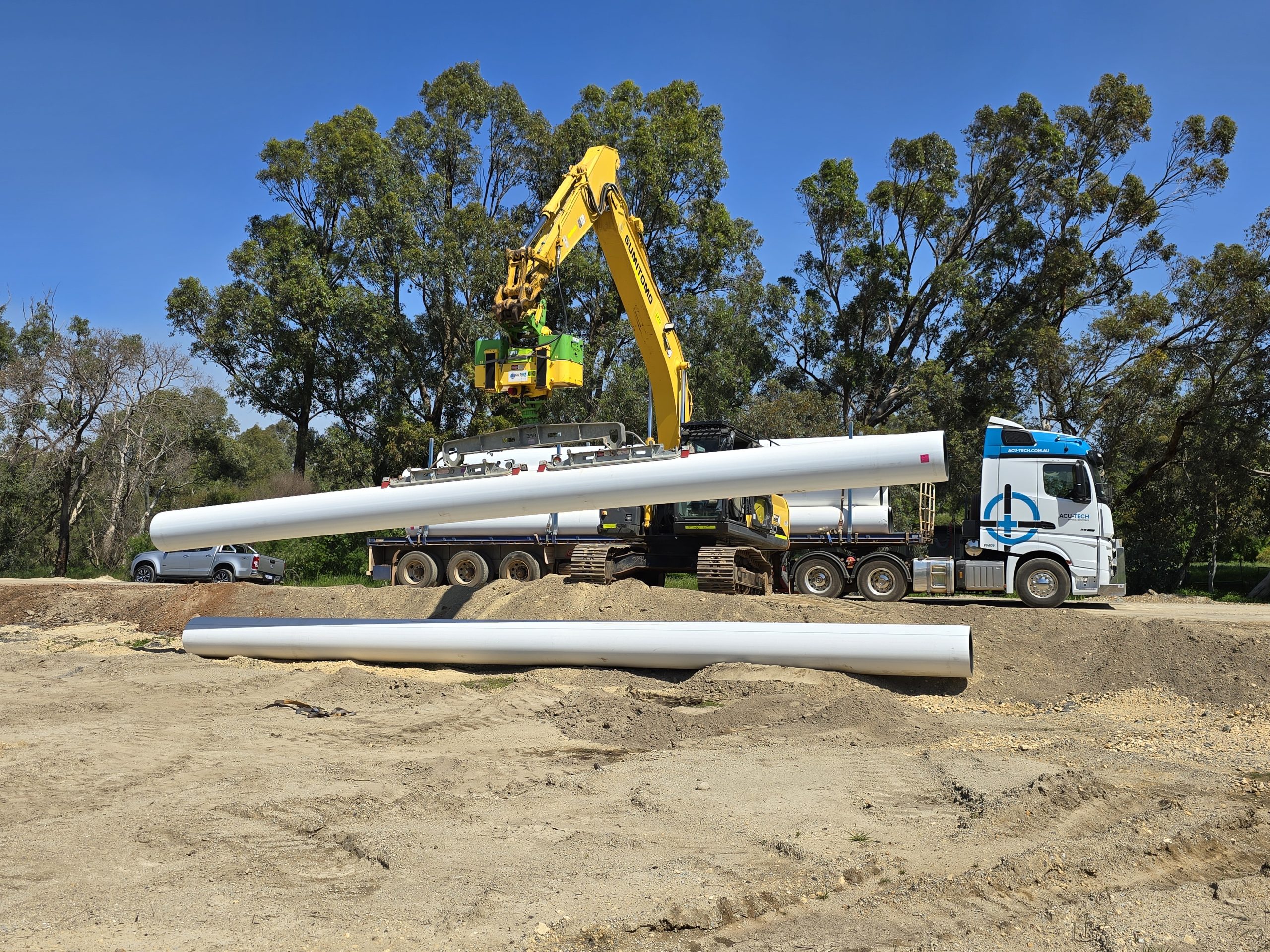

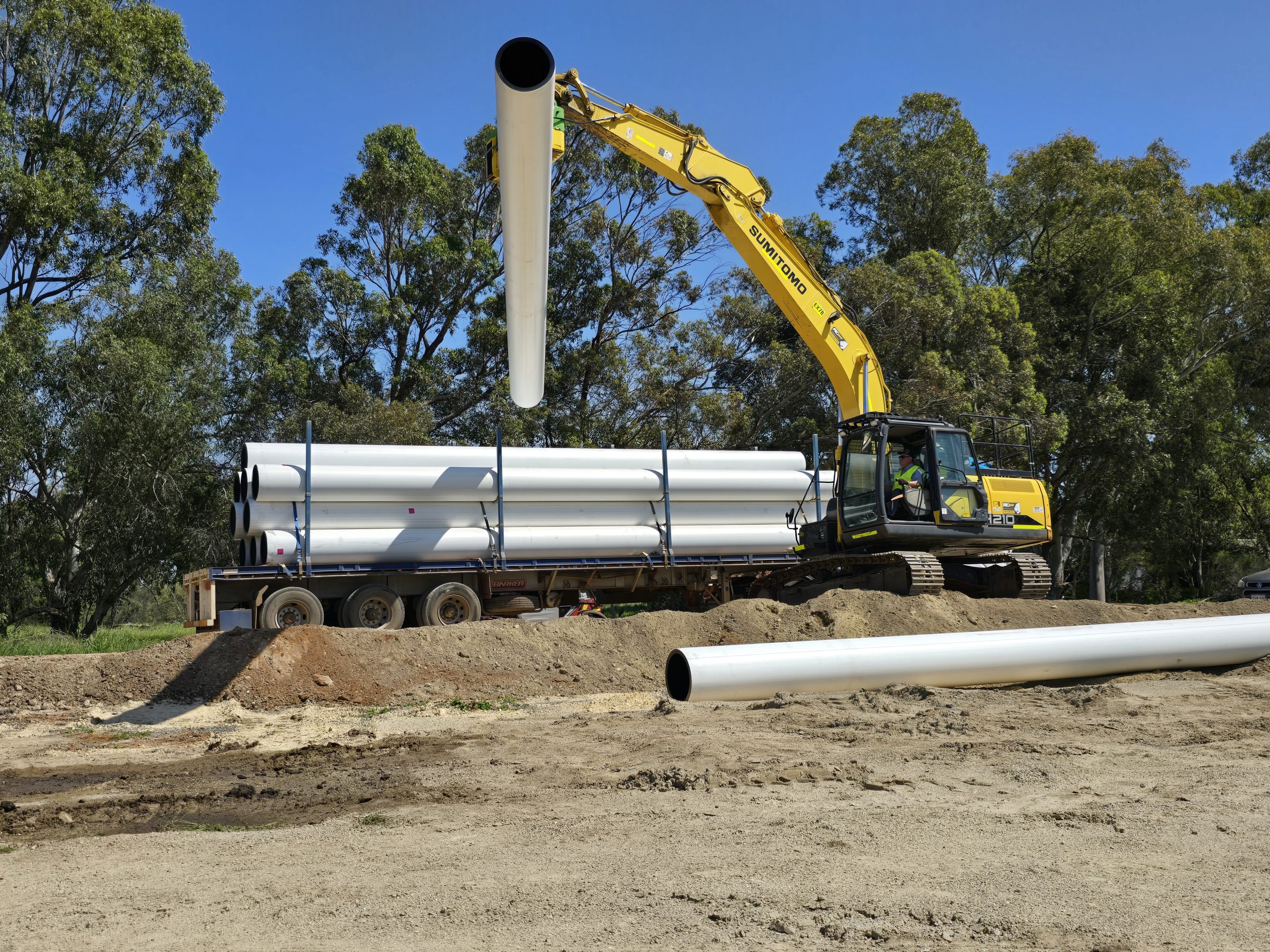

The VAC LIFTER is a versatile lifting and handling equipment designed for efficient and safe pipe transportation.
Equipped with a vacuum system, it securely adheres to various surfaces, enabling effortless lifting and moving of heavy objects without the need for slings or hooks.
Applications
Note: Please consult the hire team for specific technical specifications and operating instructions.
INCREASED EFFICIENCY:
The Vac Lifter’s powerful vacuum system enables quick and easy lifting and handling of pipe, minimizing downtime and maximizing productivity.
SAFETY:
The secure vacuum grip eliminates the risk of materials slipping or falling, ensuring a safer working environment for your crew.
FAST & EFFICIENT PIPE HANDLING SOLUTION
Compared to traditional methods like cranes or forklifts, the Vac Lifter offers a more economical solution for lifting and handling heavy materials.

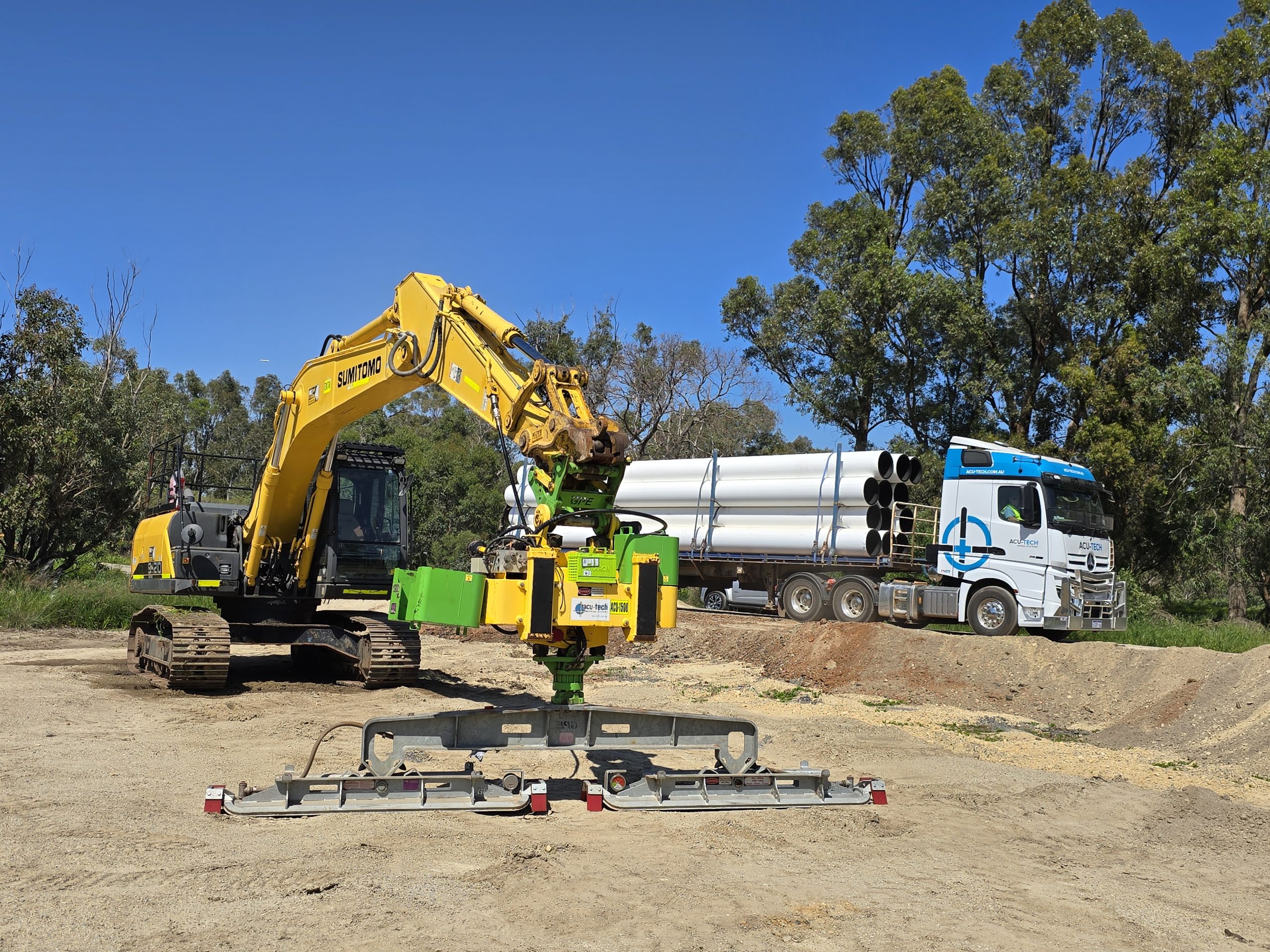

MULTIPLE PAD SIZES & SPREADER BEAMS:
Choose from a range of pad sizes and spreader beams to accommodate different object weights and dimensions.
EXCAVATOR COMPATIBILITY:
An adjustable hitch that will fit most excavators, the Vac Lifter is designed for easy operation with excavators over 15t, requiring a bi-directional hydraulic flow of 100-250 Lpm and a working load limit (WLL) of 15,000kg.
Size (mm) & SWL (Kg)
Pad 315-400 1250
Pad 500-675 2500
Pad 675-850 3000
Pad 860-1080 4500
Pad 1200-1400 5000
Spreader Bar 9000 5000
Spreader Bar 2000 5000
