Squeeze off

Tools.

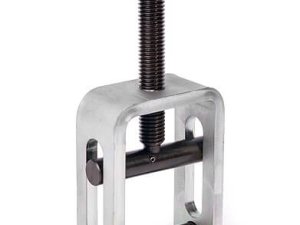

Mini squeeze off tool

The Mini Squeeze Off Tool serves the purpose of limiting the flow in PE (Polyethylene) pipes. By simply turning the handle clockwise manually, this tool provides a convenient and straightforward way to manage the flow within the pipe.

Product Code & Description

251-1010 Mini Squeeze Off Tool – 16mm to 32mm

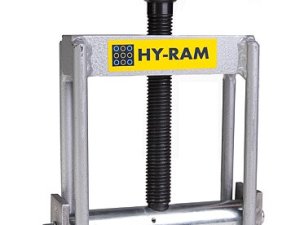

Heavy Duty Squeeze Off Tools

The heavy-duty squeeze-off tools are designed for the control of flow or temporary closure of pipes within the size range of 20mm to 125mm. These tools can accommodate various pipe diameters by using the appropriate pipe stop, ensuring that the squeeze gap is adjusted to the optimum level for the task at hand.

Product Code & Description

251-1030 Squeeze Off Tool – 20mm-63mm SDR11
251-1031 Pipe Stop Pair – 20-63mm SDR11
251-1032 Pipe Stop Pair – 20-63mm SDR17
251-1040 Squeeze Off Tool – 63-125mm SDR11 & SDR17
251-1041 Squeeze Off Tool – 63-125mm SDR21
251-1042 Pipe Stop Pair, 63-125mm SDR11 & SDR17
251-1043 Pipe Stop Pair, 63-125mm SDR21

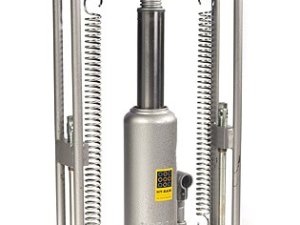

Hydraulic Squeeze Off Tool - 180 & 200mm

The 180 and 200 hydraulic squeeze off tools have CNC machined stops and an integral hydraulic jack enabling a maximum squeeze force of 15 tonnes. The units are fitted with safety check screws to prevent accidental release and also incorporate a jack spring return mechanism. ‘Pipe Stops’ are used on units for each diameter/SDR combination to ensure the optimum squeeze gap.

Product Code & Description

251-1050 Squeeze Off Tool – 63mm*180mm
251-1060 Squeeze Off Tool – 63mm-200mm

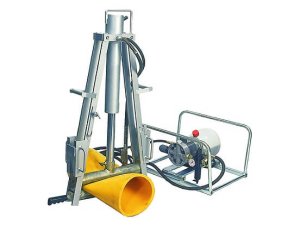

Hydraulic Squeeze Off Unit - 250mm

This squeeze-off unit features a lightweight, fold-able A-Frame design for easy portability. The lower beam is fitted with pipe stops to ensure the pipe is not over squeezed.. After the pipe squeeze is completed, the beams can be securely locked, and the A-Frame can be detached for use with another set of beams. The kit comes with four beam sets, enabling multiple squeeze-offs to be performed using a single A-Frame.

Kit includes:

  • 1x A Frame
  • 4x Top Beam Assemblies
  • 4x Bottom Beam Assemblies
  • 1x Power Unit or (hand pump not shown)

Product Code & Description

251-1070 Manual Squeeze Off Unit – 250mm
251-1075 Hydraulic Squeeze Off Unit – 250mm

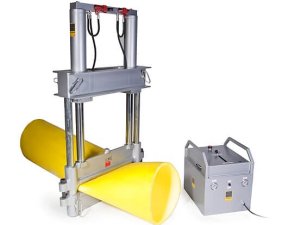

Hydraulic Squeeze Off Unit - 400mm & 500mm

These squeeze-off units are equipped with two hydraulic rams that deliver high squeezing pressure, making them ideal for large diameter pipes. After the pipe squeezing operation is completed, the beams can be securely locked, allowing the two hydraulic cylinders to be detached and utilized with another set of beams. The lower beam is fitted with pipe stops to prevent excessive squeezing of the pipe. The kit includes four beam sets, enabling multiple squeeze-offs to be carried out using just one pair of hydraulic rams, enhancing efficiency and flexibility.

Kit includes:

  • 2x Hydraulic Cylinders
  • 4x Top Beam Assemblies
  • 4x Bottom Beam Assemblies
  • 1x Power Unit

Product Code & Description

251-1080 Hydraulic Squeeze Off Unit – 400mm
251-1090 Hydraulic Squeeze Off Unit – 500mm
